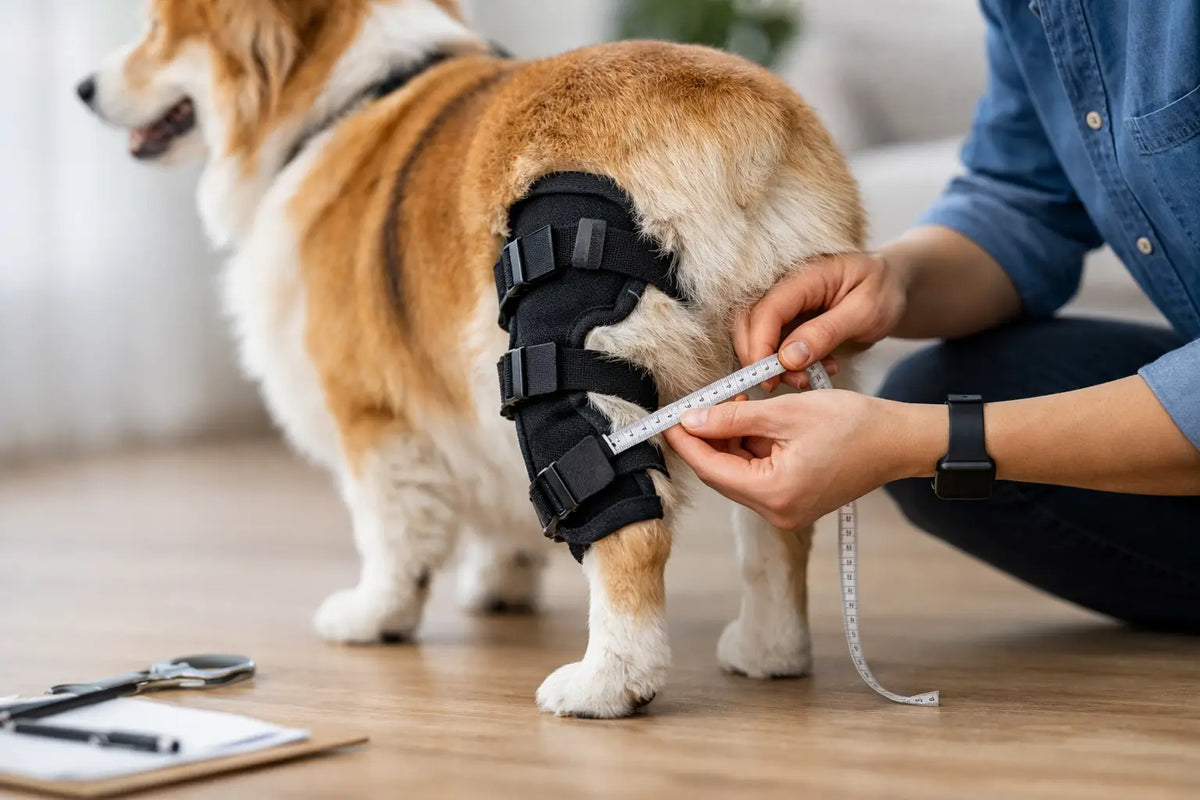

A brace can only do its job if it fits the dog in front of you, not the dog on a size chart. That is why learning how to measure dog brace dimensions correctly matters so much. A few small mistakes in length, circumference, or joint position can change how well the device supports the limb, how comfortable it feels, and how willing your dog is to wear it.
For most pet owners, the hardest part is not using a tape measure. It is knowing exactly where to place it, how snug to pull it, and which measurements matter most for the specific brace your dog needs. A carpal brace, hock brace, knee brace, and full leg orthotic do not rely on the exact same landmarks, so accuracy starts with understanding the body part you are measuring.
Why accurate dog brace measurements matter
A dog brace is built to stabilize movement, reduce strain, and improve function. If the brace is too loose, it may rotate, slide down, or fail to control the joint. If it is too tight, it can create pressure points, rub the skin, or interfere with circulation.
That balance is especially important for dogs dealing with ligament injuries, neurologic weakness, hyperextension, deformity, arthritis, post-surgical recovery, or limb instability. In these cases, proper support can help a dog move more confidently and stay active with less discomfort. A poor fit can do the opposite and make an already vulnerable limb harder to use.
Custom work also depends on measurements that reflect the dog in a natural standing position. A leg measured while twisted, bent, or partially unloaded may produce dimensions that look close on paper but do not match real weight-bearing function.
Before you start measuring
Set your dog up on a flat, non-slip surface. If possible, have a second person help keep your dog standing squarely and calmly. You want the leg underneath the body in a normal position, not stretched far forward or kicked out to the side.
Use a soft cloth measuring tape, not a metal one. If your dog has long hair or a thick coat, smooth the fur down before measuring. Do not compress the coat so much that you change the true limb size, but do not measure with fluffed-out fur either. The tape should sit snugly against the body without digging in.
It also helps to take each measurement two or three times. If the numbers are inconsistent, stop and recheck your landmarks. In brace fitting, guessing is usually what causes trouble later.
How to measure dog brace size step by step
The exact measurements vary by brace type, but most custom dog braces depend on three categories of information: circumference, length, and joint placement.
Start with circumference measurements
Circumference tells the fabricator how the brace will hold onto the leg and where support will be distributed. These measurements are usually taken at specific points above and below the affected joint.
Wrap the tape all the way around the limb at the requested location. Keep it level, not angled. Pull it snug enough that there are no gaps, but not so tight that the skin indents deeply. Think fitted, not squeezed.
For example, if you are measuring for a hock brace, you may need a circumference above the hock, at the narrowest point around the joint, and below it near the metatarsal area. For a carpal brace, the requested points will be higher and lower on the front leg. For a stifle or knee brace, the upper thigh and lower leg measurements are both critical because they control suspension and alignment.
Measure length along the leg, not through the air
Length measurements should follow the contour of the limb unless you have been told to measure in a straight line between landmarks. This is where many pet owners lose accuracy. They measure from point A to point B as the crow flies, but the brace will actually sit along the shape of the leg.
Use the tape to follow the outside of the limb from one defined landmark to another. Common examples include from above the joint to below the joint, from the paw to the center of the joint, or from the ground to a point on the leg. Make sure your dog remains standing while you do this, because flexing the leg can shorten the apparent distance.
Identify the joint center carefully
Joint placement is one of the most important parts of custom brace design. If the brace hinge or support structure does not match the dog’s actual anatomy, the device may shift with every step.
Use your fingers to feel for the bony landmarks around the joint. On some dogs, especially those with muscle loss or swelling, this can take a little patience. Do not estimate if you are unsure. Reposition the leg gently, feel again, and confirm the center point before recording the measurement.
Common measuring mistakes to avoid
The most common mistake is measuring while the dog is lying down. It feels easier, but it often changes limb shape and joint angle. Braces are generally designed for function during standing and walking, so the measurements should reflect that.
Another mistake is measuring too loosely because owners worry about making the dog uncomfortable. A loose tape adds extra space that does not exist when the brace is worn. That can lead to slipping and poor support.
The opposite problem also happens. Owners pull the tape very tight because they assume the brace should feel secure. A brace should be supportive, but it should not choke the limb. Deep compression can create a finished fit that is too tight once the dog is active.
Misidentifying the measuring point is another issue, especially around the knee and hock. Two people can both measure carefully and still get different numbers if they are not using the same landmarks. That is why written instructions, diagrams, or guided consultation are so valuable.
It depends on the type of brace
Not every dog brace is measured the same way, and that is worth emphasizing. A simple wrap-style support may need fewer dimensions than a custom orthotic that controls joint motion precisely. The more complex the mobility problem, the more exact the measurements usually need to be.
For mild instability, support, or compression, a standard-size product may sometimes be enough if the dog falls clearly into the sizing range. For significant deformity, partial limb loss, knuckling, hyperextension, or advanced joint instability, custom measurements become much more important because the limb does not match an average pattern.
Breed and body type matter too. A Greyhound leg, a Bulldog leg, and a senior mixed-breed leg with arthritis can differ dramatically in taper, muscle tone, and stance. That is one reason a made-to-measure approach often produces better control and comfort than trying to force a difficult anatomy into a generic size.
Photos and video can help measurements make sense
Numbers matter, but they are not the whole story. Clear standing photos from the front, side, and back can show limb alignment, paw position, angulation, and weight-bearing. A short walking video can also reveal whether the dog swings the leg, drags the paw, rotates the limb, or collapses at the joint.
This context can help a brace specialist spot inconsistencies in measurements or identify when an additional dimension is needed. Sometimes a dog measures within a normal range but moves in a way that calls for a different brace design or trim line.
At Bionic Pets, this kind of real-world fit information has always been central to restoring mobility. The goal is not just to match numbers. It is to create support that works during everyday life.
When to ask for help with measuring
If your dog is painful, highly anxious, unstable when standing, or has a complex condition, get help before you finalize anything. The right support can make a major difference, but the process needs to start with accurate data.
Veterinarians, rehab professionals, and experienced brace providers can help clarify which landmarks to use and whether your dog is a candidate for a standard or custom solution. This is especially useful after surgery, in cases with swelling, or when the limb shape may change as healing progresses.
If your dog is between sizes, do not assume sizing up is always better. Sometimes a larger brace slips and creates more rubbing, while a smaller one may be too compressive. The right answer depends on the brace design, the body region, and the clinical goal.
What to do after you finish measuring
Write every number down immediately. Label each one clearly so you do not confuse upper and lower circumferences or left and right limbs. If you are asked for photos, take them in good lighting with the full limb visible.
Then pause and review the full set before submitting it. Do the numbers make sense together? If one circumference is much larger or smaller than expected, recheck it. If the dog shifted during a length measurement, repeat it. A few extra minutes here can save days of frustration later.
A well-measured brace gives your dog the best chance at real support, better movement, and a more comfortable return to daily life. When you take the time to measure carefully, you are not just filling out a form. You are helping build a mobility solution around your dog’s actual needs.
